What is a torque converter and what does it do?

A torque converter is a fluid coupling device in automatic transmissions that transfers rotating power from the engine to the transmission using pressurized hydraulic fluid rather than a mechanical connection. It serves two critical functions: First, it allows your engine to continue running while your vehicle is stopped in gear (similar to how a manual transmission clutch disengages). Second, it multiplies engine torque by 2-3 times during acceleration from a standstill, providing extra power to overcome inertia and get your vehicle moving smoothly. The torque converter replaces the mechanical clutch found in manual transmissions. Instead of friction plates engaging and disengaging, the converter uses high-velocity transmission fluid to transfer power between the engine-driven impeller and the transmission-connected turbine. This fluid coupling provides smooth power delivery without the jerky engagement that can occur with mechanical clutches. For a complete understanding of how automatic transmissions work, see our guide on how automatic transmissions work.

How does a torque converter work?

A torque converter operates through three main internal components working together: the impeller (pump), turbine, and stator. The impeller bolts to the engine’s flexplate and spins at engine speed, using centrifugal force to fling transmission fluid outward toward the turbine. The turbine connects to the transmission input shaft and captures the kinetic energy of the moving fluid, causing it to rotate and drive the transmission. The stator sits between them and redirects fluid returning from the turbine back to the impeller, dramatically improving efficiency and enabling torque multiplication. The converter operates through three distinct phases. During the stall phase (engine running, vehicle stopped), maximum torque multiplication occurs—up to 3:1 multiplication. In the acceleration phase (vehicle moving but significant speed difference between engine and transmission), progressive torque multiplication decreases as vehicle speed increases. Finally, in the coupling phase (highway cruising, minimal speed difference), torque multiplication ceases and the lockup clutch typically engages to eliminate slippage and improve fuel economy by 5-15%. Learn more about the mounting connection in our article on how flywheel and flexplate work.

What is torque converter lockup and why is it important?

Torque converter lockup is a mechanical clutch inside the converter that directly locks the turbine to the impeller at highway speeds, eliminating all fluid coupling and slippage. When engaged, the lockup clutch creates a direct 1:1 mechanical connection between engine and transmission, functioning like a manual transmission clutch that’s fully engaged. This eliminates the 5-10% efficiency loss inherent in fluid coupling and provides noticeably better fuel economy during highway cruising. The transmission control module electronically controls lockup clutch engagement based on vehicle speed, engine load, throttle position, and transmission temperature. Typically, lockup engages around 40-50 MPH during light cruising and disengages during acceleration, deceleration, and gear changes to restore the fluid coupling benefits. Modern transmissions may use partial lockup clutch application—allowing some controlled slippage—to balance efficiency with smoothness. A failing lockup clutch causes shuddering during acceleration and reduced fuel economy. For more on transmission electronic controls, see how automatic transmission mechatronics work.

What's the difference between a torque converter and a clutch?

A torque converter and manual clutch serve the same basic purpose—allowing the engine to run while the vehicle is stopped and controlling power transfer to the transmission—but they achieve this through entirely different mechanisms. A manual clutch uses friction plates that mechanically engage and disengage through driver-controlled pedal input. The clutch either connects the engine to the transmission (engaged) or disconnects them completely (disengaged), with no in-between state except during the brief engagement period. A torque converter, in contrast, uses fluid coupling that allows continuous variable slippage between engine and transmission. The converter never completely disconnects the engine from the transmission (except in neutral), but the fluid coupling allows them to operate at different speeds. This provides several advantages: smoother power delivery without driver skill requirements, automatic torque multiplication during acceleration, protection of transmission components from engine power spikes, and no wear from repeated engagement like clutch friction materials experience. The trade-off is slightly lower efficiency (5-10% loss through fluid coupling) and more complex, expensive maintenance. Compare with manual transmission systems in our guide on how manual transmission and clutch work.

Do all automatic transmissions have torque converters?

No, not all automatic transmissions use traditional torque converters. Conventional automatic transmissions with planetary gearsets all use torque converters for power transfer and torque multiplication. However, several alternative automatic transmission designs use different approaches. Dual-clutch transmissions (DCT) use two computer-controlled clutches instead of a fluid coupling—essentially automated manual transmissions with electronically controlled clutch engagement. Some continuously variable transmissions (CVT) use torque converters for initial launch, while others use centrifugal clutches or electronic clutches. Automated manual transmissions (AMT) use single computer-controlled clutches rather than torque converters, common in heavy trucks and some economy vehicles. Electric vehicles with single-speed transmissions typically need no torque converter because electric motors provide full torque from zero RPM and don’t require the torque multiplication that combustion engines need. Hybrid vehicles may use power-split devices (planetary gear sets with motor-generators) that function somewhat like electronic CVTs without traditional torque converters. For information on alternative transmission technologies, see our guides on how CVT transmissions work and how dual-clutch transmissions work.

How do I know if my torque converter is bad?

Several distinctive symptoms indicate torque converter problems. The most common is shuddering or vibration that feels like driving over a rumble strip, typically occurring at 30-50 MPH during light acceleration. This usually indicates a failing lockup clutch. Delayed engagement (2+ second delay when shifting into Drive or Reverse) or slipping (engine RPM increases without proportional acceleration) suggests the converter isn’t transferring power efficiently. Transmission overheating with temperature warning lights or burnt fluid smell indicates excessive converter slippage generating heat. Unusual noises provide additional diagnostic clues: whining that increases with engine RPM suggests worn stator bearings, while grinding or rattling at idle in gear points to stator one-way clutch failure. If you notice contaminated transmission fluid—dark brown or black color, burnt smell, or visible metal particles—internal converter or transmission damage has occurred. Any of these symptoms requires immediate professional diagnosis, as continued driving can transform a converter replacement into a complete transmission rebuild. For comprehensive transmission diagnostic information, visit our diagnostics and troubleshooting section.

What causes a torque converter to fail?

Torque converter failure typically results from several root causes, often interconnected. Transmission fluid problems are the most common culprit—low fluid level from seal leaks prevents adequate hydraulic pressure, while degraded or contaminated fluid accelerates wear on friction materials and bearings. Overheating from excessive towing, stop-and-go traffic, or restricted transmission coolers breaks down fluid rapidly and damages internal components. Normal operating temperature is 175-220°F, but converter failure accelerates dramatically above 260°F. Lockup clutch wear occurs naturally over time, with the friction material degrading from repeated thermal cycles and engagement/disengagement. Internal component damage can result from contamination—metal debris from a failing transmission component enters the converter and damages the impeller, turbine, or stator bearings. Stator one-way clutch failure causes the clutch to either seize (reducing fuel economy) or freewheel constantly (eliminating torque multiplication and causing poor acceleration). Manufacturing defects occasionally occur but are less common than wear and maintenance-related failures. Proper fluid maintenance and avoiding excessive heat are the best preventive measures.

How it works - Repairs Advisor Blog

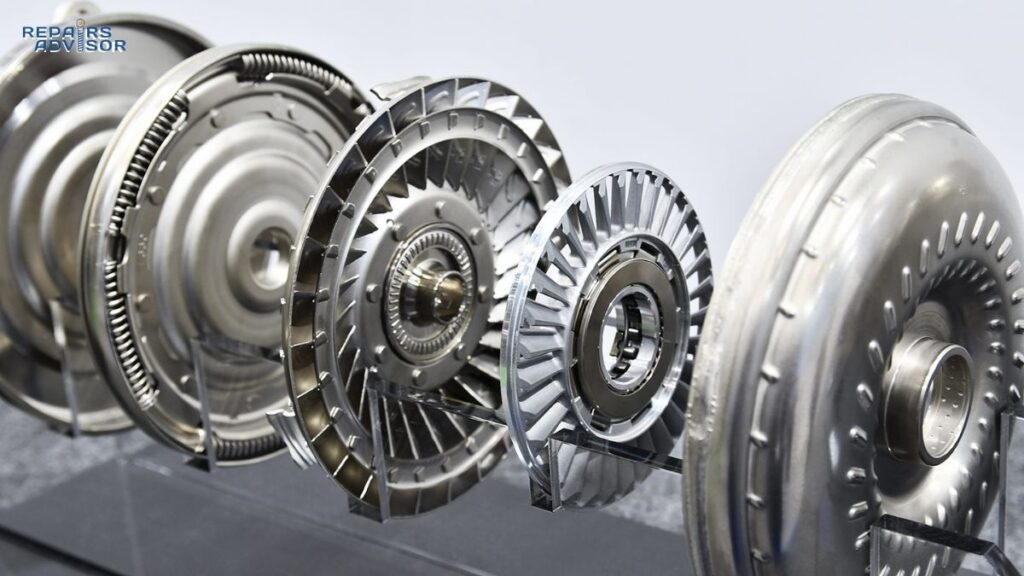

How Torque Converters Work: Fluid Coupling
