Signs of a Bad Air Pump Check Valve

Air Pump Check Valve

The air pump check valve is a small but vital component in your car’s emission control system, specifically within the secondary air injection (SAI) system. Its primary job is to act as a one-way valve, allowing air from the air pump to enter the exhaust system. Crucially, it prevents hot, corrosive exhaust gases from flowing backward into the air pump, which would quickly damage it.

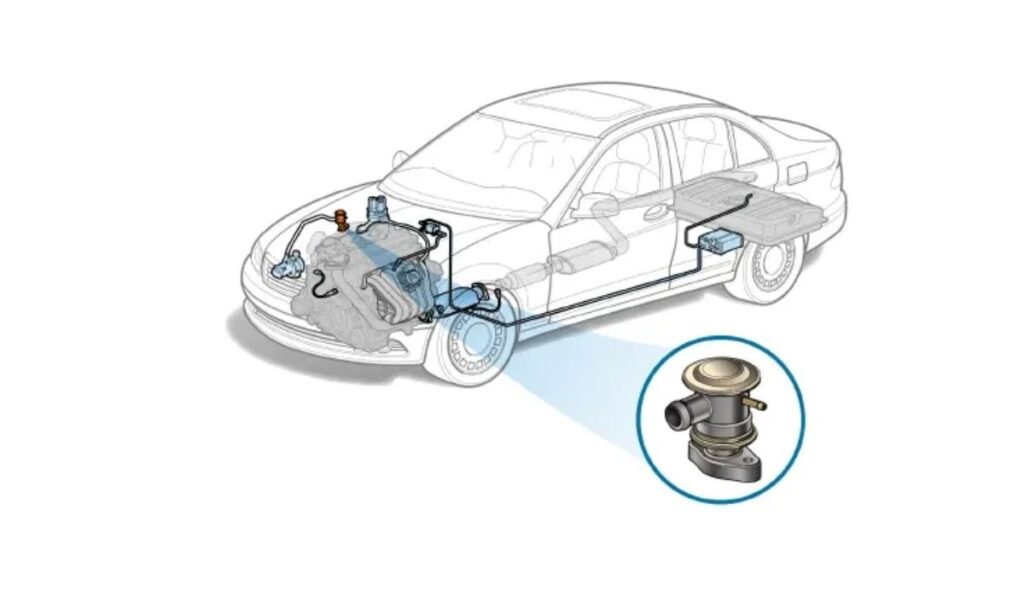

Air Pump Check Valve

Symptoms of a Bad or Failing Air Pump Check Valve

A malfunctioning air pump check valve can impact your vehicle’s emissions and trigger warnings, even if the main air pump is still working. Here are the key signs:

  1. Check Engine Light (CEL) Illumination:
    • This is the most common symptom. If the check valve fails to open or close properly, the vehicle’s computer (ECM) will detect an issue with the secondary air injection system’s operation. This will cause the Check Engine Light to illuminate on your dashboard.
    • Specific diagnostic trouble codes (DTCs) related to the secondary air injection system (e.g., P0410 – Secondary Air Injection System Malfunction, or codes indicating incorrect flow) will likely be stored in the computer’s memory.
  2. Vehicle May Fail an Emissions Inspection:
    • The secondary air injection system, including the check valve, is essential for reducing cold-start emissions by helping the catalytic converter warm up quickly. If the check valve is faulty, the system won’t function as intended, leading to elevated emissions. This will often result in your vehicle failing an emissions inspection or smog test.
  3. Engine Noise (Less Common but Possible):
    • In some rare cases, if the check valve fails and allows hot exhaust gases to flow back into the air pump, it could cause the air pump to make unusual noises (like grinding or whining) as it struggles or gets damaged. However, this is usually a symptom of a damaged air pump caused by a bad check valve, rather than a direct symptom of the valve itself.

How to Fix a Bad Air Pump Check Valve

Addressing a faulty air pump check valve primarily involves accurate diagnosis and replacement. Here’s how a professional approaches this repair:

  1. Thorough Diagnostic is Key: Beyond the Code:
    • When the Check Engine Light comes on with an air injection system code (like P0410), it’s important to understand that this code doesn’t automatically pinpoint the check valve. The system includes the air pump, various hoses and pipes, a relay, electrical wiring, and the check valve(s).
    • A qualified mechanic will use a sophisticated diagnostic scan tool to:
      • Read specific trouble codes: While P0410 is generic, manufacturers often have more specific codes that narrow down the problem.
      • Monitor live data: They’ll observe parameters like air pump command status, oxygen sensor readings during cold start, and manifold pressure to see if the system is actually flowing air as commanded.
      • Perform functional tests: Many scan tools can activate the air pump and related valves independently, allowing the mechanic to listen for operation and confirm air flow.
    • They’ll also perform a visual inspection for disconnected or cracked hoses, melted components (due to back-flowing hot exhaust), or obvious damage to the air pump itself. A common issue is a restricted passage or air pipe, which can mimic a bad check valve.
  2. Replacement of the Check Valve:
    • Once the check valve is confirmed as the faulty component, the mechanic will carefully remove the old valve. These are often located in tight, hot areas of the engine bay, sometimes bolted directly to the exhaust manifold or cylinder head.
    • A new, OEM-quality replacement check valve will then be installed. It’s crucial that the new valve matches the specifications for your vehicle to ensure proper air flow and sealing.
  3. Consider Replacing Both Check Valves (for V-Type Engines):
    • If your vehicle has a V-type engine (like a V6 or V8), it typically uses two separate air pump check valves, one for each cylinder bank.
    • When one check valve fails and triggers a diagnostic trouble code, it’s a common and highly recommended practice to replace both check valves simultaneously. Even if the second valve isn’t currently setting a code, it has been exposed to similar operating conditions and hot exhaust gases, meaning it’s likely already partially restricted or nearing the end of its lifespan. Proactive replacement prevents another repair job (and associated labor costs) in the near future.
  4. Check for Related Damage:
    • If the check valve failed by allowing hot exhaust backflow, the mechanic will also inspect the air pump itself and any connected hoses and pipes for heat damage or debris from the exhaust. Sometimes, a damaged air pump may be a secondary consequence of a failed check valve.
  5. Clear Codes and Verify Repair:
    • After the replacement, the mechanic will clear the trouble codes from the vehicle’s computer. A final scan and often a test drive will confirm that the secondary air injection system is functioning correctly and that no new codes appear, indicating the problem has been successfully resolved and the vehicle is ready for emissions testing.

Conclusion

The air pump check valve plays a silent but crucial role in your vehicle’s emission control system. Its failure, while seemingly small, can trigger that unwelcome Check Engine Light and cause your car to fail an emissions inspection. However, pinpointing this specific component as the cause requires more than just reading a fault code.

Don’t attempt to guess the problem or simply replace parts in a complex emission system. Misdiagnosing an air pump check valve could lead to unnecessary repairs and the recurring frustration of a Check Engine Light.

For accurate diagnosis and effective repair of your secondary air injection system, always consult a qualified automotive technician. They have the specialized diagnostic tools and expertise to identify whether the issue is with the check valve, the air pump, relays, or related plumbing, ensuring your vehicle runs cleanly and passes its inspections. Get peace of mind about your car’s emissions—schedule a professional diagnostic today!
