Advanced engine thermal management through precision oil delivery – information for reference only
Piston cooling jets represent sophisticated engineering solutions that enable high-performance engines to operate at extreme temperatures exceeding 500°F (260°C), with oil flow rates of 0.5-2.0 L/min per cylinder. These precision-engineered nozzles direct pressurized oil (20-80 PSI) to critical piston crown areas, preventing catastrophic thermal failure in turbocharged and supercharged applications.
Safety Notice: Understanding piston cooling jet systems requires advanced mechanical knowledge. While this information is provided for educational purposes, diagnosis and repair of oil gallery design and thermal management systems should be performed by qualified automotive professionals using manufacturer specifications and proper safety procedures.
Why Piston Cooling Jets Are Critical for Engine Performance
Modern high-performance engines generate tremendous heat through combustion and friction, with piston crowns experiencing temperatures that can exceed 500°F (260°C) during peak operation. Piston cooling jets provide targeted oil gallery design that addresses thermal management challenges by delivering precisely metered oil flow to the hottest components in the engine.
Intermediate DIY Enthusiasts will appreciate understanding how thermal management systems integrate with overall engine lubrication. The oil gallery design within the engine block creates dedicated pathways that route pressurized oil from the main oil system to individual cooling jet locations. Each jet is strategically positioned to deliver oil exactly where thermal stress is highest.
Professional Mechanics recognize that high performance engines rely on sophisticated temperature regulation systems. Modern turbocharged and supercharged engines, along with performance-oriented naturally aspirated designs, incorporate piston cooling jets as standard equipment. The thermal management provided by these systems allows engines to maintain optimal performance while operating under extreme conditions that would destroy engines without adequate cooling.
Complete Beginners should understand that piston cooling jets are specialized components found primarily in high-performance applications. Unlike basic engine cooling systems that use coolant, these systems use engine oil as both a lubricant and a cooling medium. The How Engine Oil Pumps Work: Pressure Generation and Flow Control article provides foundational knowledge about oil pressure systems that supply these cooling jets.
The integration of piston cooling jets with the broader engine lubrication system demonstrates advanced automotive engineering. Oil flow control mechanisms ensure that cooling jets receive adequate pressure while maintaining proper lubrication to other engine components. This balance between thermal management and lubrication efficiency separates high-performance engines from conventional designs.
Piston Cooling Jets Parts and Construction Explained
The piston cooling jet assembly consists of precisely machined components designed to withstand extreme pressure and temperature conditions while delivering consistent oil flow. Understanding the construction of these components reveals the sophisticated engineering required for effective thermal management in high performance engines.
Jet Nozzle Assembly: The core component features a precision-machined orifice that meters oil flow according to engine requirements. The nozzle diameter, typically ranging from 1.0mm to 2.5mm, determines flow rate based on oil pressure and viscosity. Professional-grade nozzles incorporate hardened steel construction with precise tolerance control to ensure consistent spray patterns across engine operating conditions.
Oil Gallery Design Integration: The cooling jets connect directly to dedicated oil galleries machined within the engine block. These galleries branch from the main oil distribution system and incorporate pressure regulation to ensure consistent flow to each cylinder. The oil gallery design includes mounting provisions, sealing surfaces, and pressure relief pathways that protect the system from overpressure conditions.
Mounting Hardware and Sealing: Each cooling jet requires secure mounting within the engine block using threaded connections or press-fit installations. O-ring seals or gasket interfaces prevent oil leakage while maintaining system pressure. The mounting design must accommodate thermal expansion and vibration while maintaining precise jet positioning relative to the piston assembly.
Flow Control Elements: Advanced systems incorporate flow control mechanisms that adjust oil delivery based on engine operating conditions. These may include pressure-sensitive valves, temperature-activated controls, or electronically-managed flow regulation. The temperature regulation achieved through these controls optimizes cooling efficiency while minimizing oil consumption.
Piston Crown Cooling Targets: The underside of the piston crown features specific design elements that enhance cooling effectiveness. Cooling galleries, fins, or shaped surfaces optimize oil distribution and heat transfer. The How Engine Pistons and Connecting Rods Work: Converting Combustion to Motion guide explains piston construction details that work with cooling jet systems.

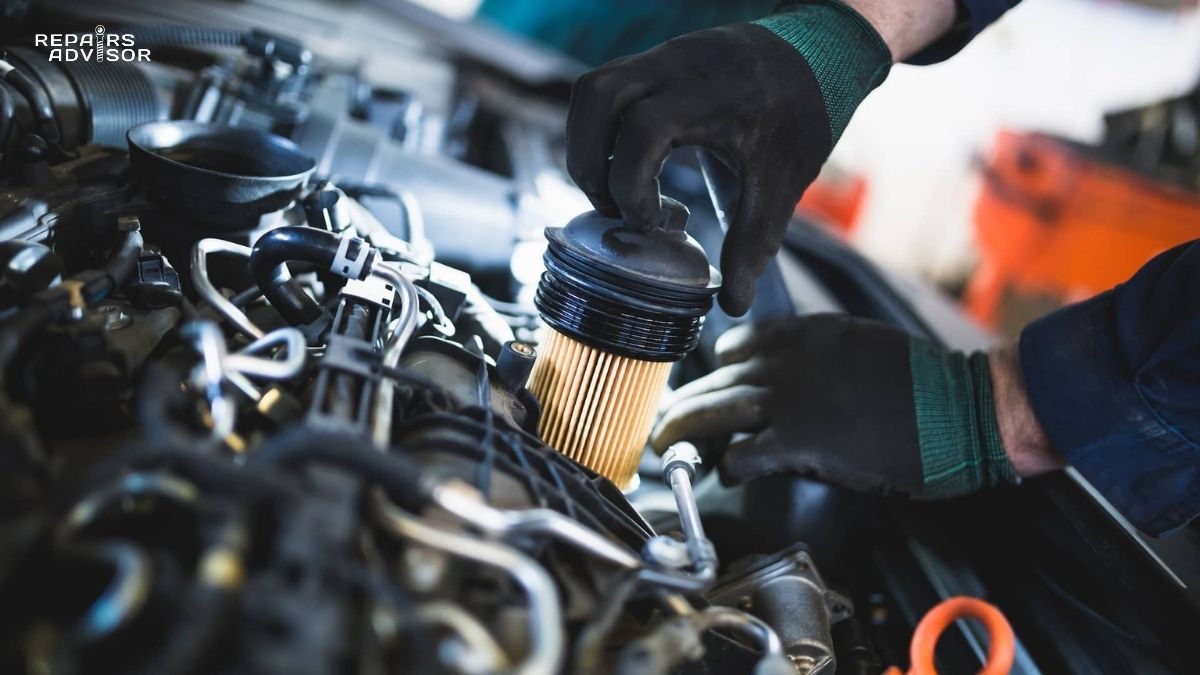

System Integration Components: Piston cooling jets coordinate with other engine systems including the oil pump, oil filter, and pressure relief valves. The How Oil Filters Work: Contamination Control system ensures clean oil delivery to cooling jets, while the How Oil Coolers Work: Temperature Management system maintains optimal oil temperatures for effective cooling.
The sophisticated construction of piston cooling jet systems demonstrates the precision engineering required for high-performance applications. Each component must operate reliably under extreme conditions while maintaining the precise flow characteristics essential for effective thermal management.
How Piston Cooling Jets Work: Step-by-Step Operation
The operational sequence of piston cooling jets involves precise coordination between oil pressure generation, flow metering, and thermal management to provide effective piston crown cooling throughout the engine’s operating range.
Step 1: Oil Pressure Generation and Distribution The engine oil pump creates pressurized oil flow that feeds the main oil gallery system. From the main galleries, dedicated branches direct oil to individual cooling jet locations. Oil pressure typically ranges from 20-80 PSI depending on engine speed and design requirements, with higher pressures available during high-load conditions when cooling is most critical.
Step 2: Flow Metering and Pressure Regulation Each cooling jet nozzle meters oil flow according to its precision-machined orifice diameter and system pressure. The oil gallery design includes pressure regulation mechanisms that maintain consistent flow across all cylinders. Flow rates typically range from 0.5 to 2.0 liters per minute per jet, with variation based on engine displacement and performance requirements.
Step 3: Targeted Oil Delivery and Spray Pattern The pressurized oil exits the jet nozzle in a precisely controlled spray pattern that targets the piston crown’s underside. The spray angle, typically 15-45 degrees, ensures complete coverage of critical cooling areas. Oil trajectory and coverage patterns are engineered to maximize contact time and heat transfer efficiency while the piston moves through its complete stroke cycle.
Step 4: Heat Transfer and Thermal Management Upon contact with the heated piston crown, the oil absorbs thermal energy and carries it away from the combustion chamber area. The temperature regulation achieved through this process prevents piston crown temperatures from exceeding critical thresholds that could cause material failure or performance degradation. Oil temperatures may increase 20-50°F during this heat absorption process.
Step 5: Oil Collection and Return After cooling the piston assembly, the heated oil drains back into the crankcase through gravity and crankcase ventilation. The How Oil Pans Work: Windage Control and Oil Storage system collects this heated oil for recirculation through the cooling and filtration systems. Oil collection systems must handle the additional oil volume created by cooling jet operation.
Step 6: System Monitoring and Protection Advanced engines incorporate monitoring systems that track oil pressure, temperature, and flow to ensure cooling jet operation remains within safe parameters. Warning systems alert operators to conditions that might compromise thermal management effectiveness. The How Oil Pressure Sensors Work: Monitoring Systems guide explains monitoring system operation.
Continuous Cycle Optimization: Modern engines incorporate variable cooling jet systems that adjust flow rates based on operating conditions. During high-load operation, increased oil flow provides enhanced thermal management. During light-load conditions, reduced flow minimizes oil consumption while maintaining adequate cooling. This dynamic operation optimizes both performance and efficiency across the engine’s complete operating range.
The sophisticated operational sequence demonstrates how piston cooling jets integrate multiple engineering disciplines to achieve effective thermal management in high performance engines.
Piston Cooling Jets Location and Access Guide
Locating and accessing piston cooling jets requires understanding engine block architecture and following proper safety procedures for working with pressurized oil systems. The positioning of these components within the engine assembly determines both their effectiveness and the complexity of service procedures.
Engine Block Integration Points: Piston cooling jets mount directly within the engine block, typically positioned between the main bearing webs and cylinder walls. The oil gallery design routes cooling jets through dedicated passages that branch from the main oil distribution system. Access points vary by engine design, with some jets accessible from the crankcase side while others require partial engine disassembly.
Cylinder-Specific Positioning: Each cylinder typically incorporates one or two cooling jets positioned to target the piston crown’s hottest areas. Jet placement considers piston stroke geometry, connecting rod clearance, and oil spray pattern optimization. The How the Crankshaft Works: Converting Linear to Rotational Motion guide explains crankcase geometry that influences cooling jet placement.
Access Procedures for Different Engine Designs:
Inline Engines: Cooling jets typically mount from the crankcase side, requiring oil pan removal and potentially crankshaft positioning for access. Some designs allow jet service with the engine installed, while others require partial disassembly.
V-Configuration Engines: Jet access may require cylinder head removal or engine block splitting depending on the specific design. Valley-mounted systems may be accessible through intake manifold removal.
Horizontally-Opposed Engines: Cooling jets may be accessible through case splitting procedures similar to major engine overhaul processes.
Safety Procedures for System Access:
- Complete Oil Drainage: All engine oil must be drained before accessing cooling jet systems to prevent spills and contamination
- Pressure Relief: Ensure all oil system pressure is relieved before disconnecting any components
- Clean Work Environment: Oil system contamination can cause serious engine damage, requiring surgical cleanliness during service
- Proper Torque Specifications: Cooling jet installation requires precise torque values to ensure sealing without component damage
Service Tool Requirements: Specialized tools may be required for cooling jet service, including pressure testing equipment, flow measurement devices, and precision torque wrenches. Professional diagnostic equipment allows verification of proper system operation after service.
Integration with Other Systems: Cooling jet service often coincides with related system maintenance including oil pump service, oil filter replacement, and cooling system maintenance. The How Engine Cooling Systems Work: Temperature Management system works in coordination with oil cooling systems to provide comprehensive thermal management.
Documentation and Specifications: Proper service requires access to manufacturer specifications for jet flow rates, oil pressure requirements, and installation procedures. Engine-specific service manuals provide critical information for safe and effective cooling jet maintenance.
Professional Consultation Recommended: Due to the complexity of oil gallery design and the critical nature of thermal management systems, professional consultation is recommended for cooling jet diagnosis and service. Improper service can result in catastrophic engine failure under high-load conditions.
Understanding piston cooling jet location and access requirements enables informed decision-making about maintenance needs while emphasizing the specialized knowledge required for safe service procedures.
