What is a vehicle network?

A vehicle network is a digital communication system that allows electronic control units (ECUs) in your car to exchange information. Instead of running separate wires between every component, modern vehicles use shared communication “buses” where multiple devices send messages over the same two or three wires. Think of it like a telephone party line where everyone can hear the conversation, but only processes messages meant for them. The most common vehicle network is CAN (Controller Area Network), which connects systems like your engine, transmission, brakes, and dashboard. Your car likely has 70-100 ECUs constantly talking to each other through these networks, coordinating everything from fuel injection timing to when your ABS activates.

Why do modern cars need networks instead of regular wiring?

Before vehicle networks, every sensor and switch required dedicated wires running to its control module. A 1980s luxury car could have over 2,000 individual wires weighing more than 50 kilograms. This created several problems: Weight and cost: More wires meant heavier vehicles that cost more to build and got worse fuel economy. Each new feature required additional wiring throughout the entire vehicle. Reliability issues: With thousands of connections, there were more points where corrosion or vibration could cause failures. Diagnosis was difficult because technicians had to trace individual wires through complex harnesses. Feature limitations: Advanced features like stability control require multiple sensors and actuators to coordinate in real-time. Hard-wiring these connections would be impractically complex and expensive. Networks solved these problems. A single twisted pair of wires (for CAN bus) can carry data from dozens of sensors and commands to dozens of actuators. This reduces wiring weight by up to 50% while enabling sophisticated features that coordinate multiple systems. For more details on how modern engine systems use networks, see our guide on engine management systems.

What does CAN stand for and what does it do?

CAN stands for Controller Area Network. Developed by Bosch in 1986, it’s the most common communication protocol in vehicles. CAN allows multiple electronic control units to communicate without a central computer, using a message-based system where each device broadcasts information that others can receive and process. Here’s how it works in practice: Your accelerator pedal doesn’t connect directly to the throttle anymore. Instead, the pedal sensor measures how far you’ve pressed and sends a CAN message saying “throttle request: 45%.” The engine control unit receives this message, combines it with data from other sensors (engine speed, temperature, etc.), and commands the throttle body to open appropriately. All this happens in about 20 milliseconds—faster than you can perceive. CAN operates at speeds from 125 kbps to 1 Mbps depending on the application. Safety-critical systems like brakes and engine control use high-speed CAN (500 kbps – 1 Mbps) for quick response. Comfort features like power windows use lower-speed CAN (125-250 kbps) because they don’t need instant reaction.

How many networks does my car have?

Most modern vehicles have 3-8 separate networks, each optimized for specific functions: High-speed networks (CAN): Powertrain network: Engine, transmission (500 kbps – 1 Mbps) Chassis network: ABS, steering, suspension (500 kbps) Body network: Lights, HVAC, power accessories (125-250 kbps) Infotainment network: Radio, navigation, displays (125 kbps) Low-speed networks (LIN): Door control clusters: Windows, locks, mirrors (9.6-19.2 kbps) Seat control clusters: Position, heating, memory (9.6-19.2 kbps) Lighting clusters: Interior and ambient lighting (9.6-19.2 kbps) High-bandwidth networks (Ethernet): ADAS network: Cameras, radar, autonomous features (100 Mbps – 1 Gbps) These networks connect through a central gateway module that translates messages between them and provides security. The gateway also connects to your OBD-II diagnostic port, allowing scan tools to access all vehicle systems. Understanding this architecture helps when diagnosing issues—a problem affecting multiple systems often points to a gateway or main network fault rather than individual component failures.

Can I see the vehicle network? Where is it located?

You can’t easily see most vehicle networks because they’re integrated into the main wiring harness. The CAN bus typically consists of two wires (CAN High and CAN Low) twisted together and bundled with power and ground wires in protective covering. Where to look: Behind the dashboard: The main networks run left-to-right under the dashboard, often visible if you look up from the driver’s footwell with a flashlight Center console area: Networks drop down through the center console to reach rear vehicle areas Firewall pass-through: Engine compartment networks connect to interior networks through a firewall connector Door jambs: LIN networks running to door modules are visible where wiring passes from body to door Color coding: CAN wires are often orange/orange-white or yellow/yellow-white twisted pairs, though color codes aren’t standardized across manufacturers. The twisted pair configuration is the key identifier—you’ll see two wires wound around each other about once per inch. Access points: OBD-II port: Located under the dashboard on the driver’s side, this 16-pin connector provides the easiest access point for connecting diagnostic tools ECU connectors: Each control module has connectors where the network wiring terminates Gateway module: Usually located under the dashboard or behind the glove box For safety reasons, you should never cut into or splice network wiring without proper training and tools. Even probing the wires with a multimeter requires care to avoid damaging the communication. Understanding the wiring harness and grounding systems helps you appreciate why vehicle networks require professional-level care.

What is a U-code and why does it appear?

U-codes are network communication diagnostic trouble codes. The “U” stands for “network and vehicle integration” in the standardized OBD-II code system. When you scan your vehicle and see codes starting with “U,” they indicate problems with the communication networks themselves rather than specific component failures. Common U-codes: U0001: High Speed CAN Communication Bus fault—the main network has problems U0100: Lost Communication with ECM/PCM—can’t talk to the engine computer U0121: Lost Communication with ABS module—brake system not responding U0140: Lost Communication with Body Control Module—body electronics offline What causes U-codes: Broken or damaged network wiring (cut, chewed, corroded) Failed electronic control unit with a bad transceiver Gateway module failure affecting message routing Connector corrosion creating intermittent connections Improper aftermarket installations that damaged the network What to do: U-codes require systematic diagnosis to identify whether the problem is wiring, a specific module, or the gateway. A scan tool that can read codes from all modules helps narrow down the issue. If only one module shows lost communication, that module or its wiring is suspect. If multiple modules show communication errors, the main network bus or gateway is likely at fault. For detailed information on specific network communication codes, see our guide on U0001: High Speed CAN Communication Bus diagnostic procedures. Understanding these codes is essential because network problems can disable your entire vehicle, even though the mechanical components are fine.

Repairs Advisor Team - Repairs Advisor Blog

How Vehicle Networks Work: CAN Bus and Communication

Modern vehicles are rolling computer networks. Your car contains 70 to 100+ Electronic Control Units (ECUs) constantly exchanging thousands of messages per second. These digital conversations coordinate everything from engine timing to emergency braking, transforming mechanical systems into integrated smart platforms. Vehicle networks didn’t always exist. Before the mid-1980s, every sensor and actuator required dedicated […]

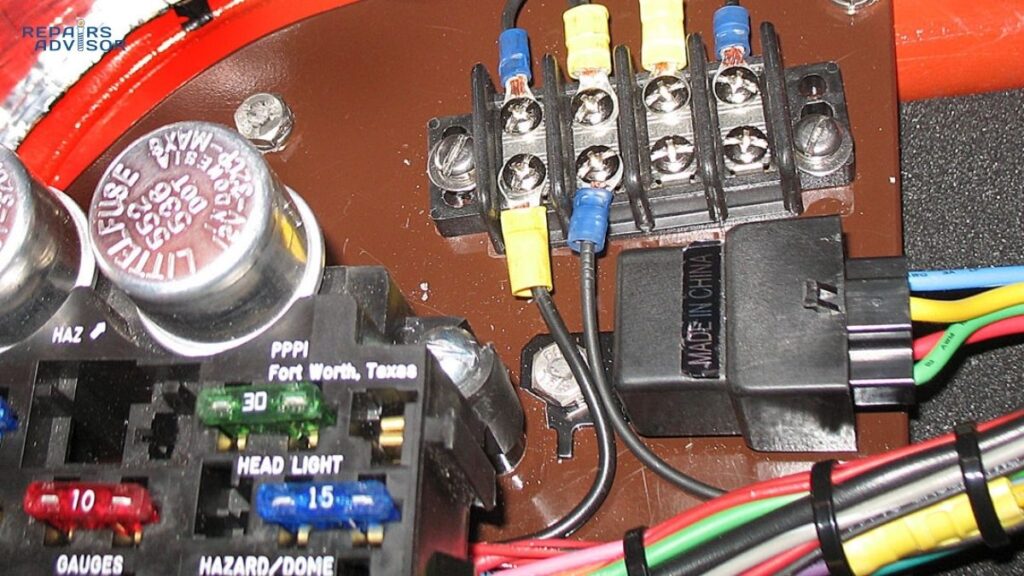

How Ground Systems Work: Electrical Return Path

Your dashboard lights flicker, the starter cranks slowly despite a new battery, and the radio cuts out when you turn on the headlights. You’ve checked fuses, tested the battery, and inspected connections—but the problem persists. The culprit? Your vehicle’s ground system, the invisible network of return paths that completes every electrical circuit in your vehicle. […]

How Wiring Harnesses Work: Power Distribution

Modern vehicles contain several kilometers of electrical wiring—enough to stretch across multiple city blocks if laid end-to-end. This complex network doesn’t run loose through your vehicle; instead, it’s organized into wiring harnesses, the carefully engineered bundles that function as your car’s nervous system. Just as your body relies on nerves to transmit signals from your […]

How Smart Power Distribution Works: Intelligent Control

Modern vehicles are evolving from mechanical machines into sophisticated software-defined systems, and nowhere is this transformation more evident than in electrical power distribution. Today’s cars contain 100+ electronic control units managing everything from engine performance to entertainment systems, all requiring intelligent power management that traditional fuses and relays simply cannot provide. Smart power distribution represents […]

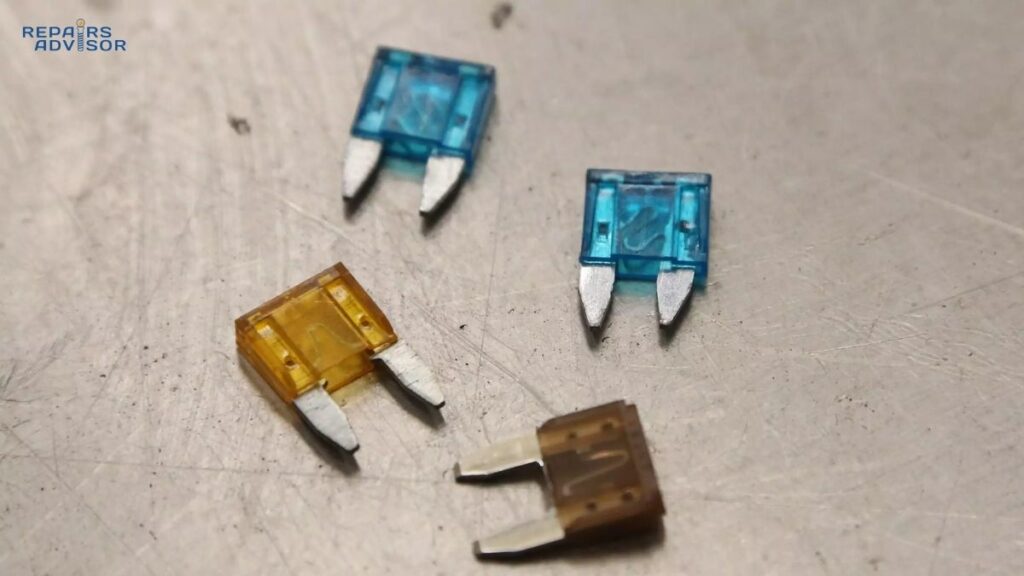

How Automotive Fuses Work: Circuit Protection

You turn the key, and your radio goes silent. Your power windows won’t budge. The dashboard lights flicker, then die. Before you imagine expensive electrical repairs, check the simplest solution first: a blown fuse. Understanding automotive fuses—those small, often-overlooked components tucked into fuse boxes—can save you time, money, and the frustration of unnecessary dealer visits. […]

How Automotive Relays Work: Circuit Control

When you turn your ignition key, press your horn button, or flip on your headlights, a small electrical switch springs into action behind the scenes. This unassuming component—the automotive relay—completes powerful circuits that would otherwise destroy your dashboard controls within hours of use. Without relays protecting your vehicle’s electrical architecture, a simple headlight switch would […]

How Starter Motors Work: Engine Cranking

Every time you turn your ignition key or press the start button, a compact yet powerful electric motor springs into action, converting battery power into the mechanical force needed to crank your engine. This unsung hero—the starter motor—performs one of the most demanding jobs in your vehicle, drawing massive electrical current and generating tremendous torque […]

How Voltage Regulators Work: Electrical Control

The voltage regulator is the unsung hero of your vehicle’s electrical system, working silently behind the scenes to prevent catastrophic electrical damage. This critical component faces a challenging task: your alternator naturally produces increasing voltage as engine speed rises, potentially reaching 30-40 volts at highway speeds without regulation. At these voltage levels, every electrical component […]

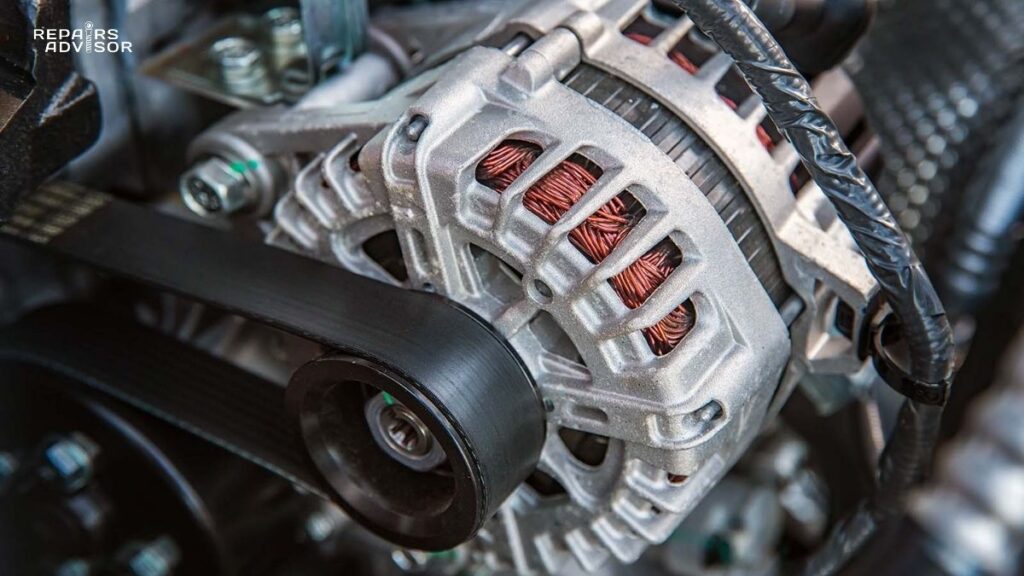

How Alternators Work: Charging System Operation

The alternator is your vehicle’s electrical power plant, converting mechanical energy from the engine into electrical energy to power all vehicle systems and continuously recharge the battery. While the battery provides starting power, the alternator supplies 100% of the electrical power needed during engine operation—running ignition systems, fuel injection, lights, climate control, entertainment systems, and […]

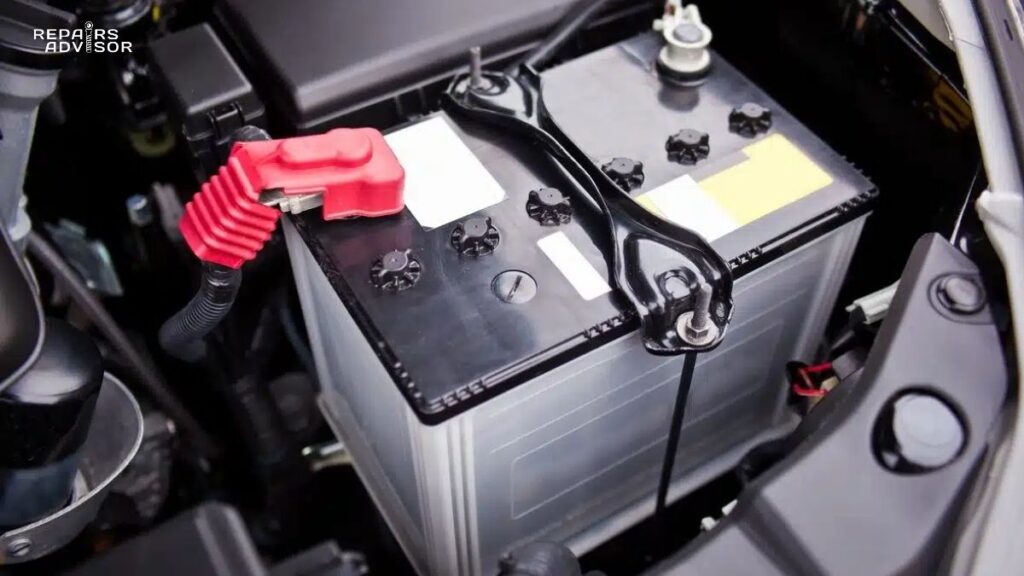

How Car Batteries Work: Energy Storage and Chemical Reactions

You turn the key in your ignition or press the start button, and your engine roars to life. This seemingly simple act depends entirely on a sophisticated electrochemical device under your hood: your car battery. Without a functioning battery, even the most powerful engine becomes nothing more than several hundred pounds of immobile metal. The […]

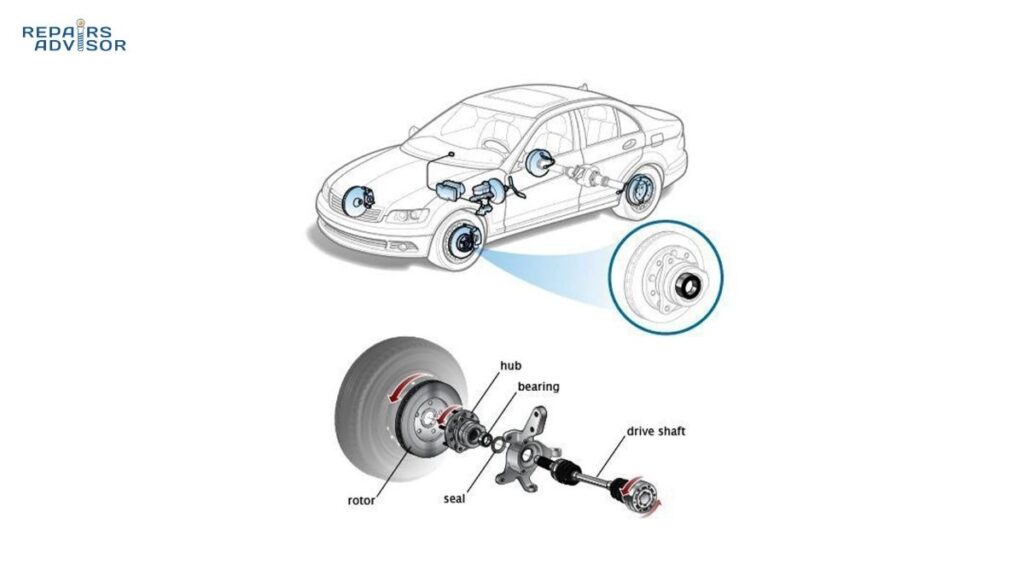

How Wheel Bearing Systems Work: Load Support & Rotation

Every time you drive, four small components silently support thousands of pounds while rotating at highway speeds, handling forces that would destroy lesser parts in minutes. Wheel bearings make modern driving possible by enabling smooth wheel rotation with minimal friction while simultaneously managing the extreme vertical loads from your vehicle’s weight, lateral forces during cornering, […]

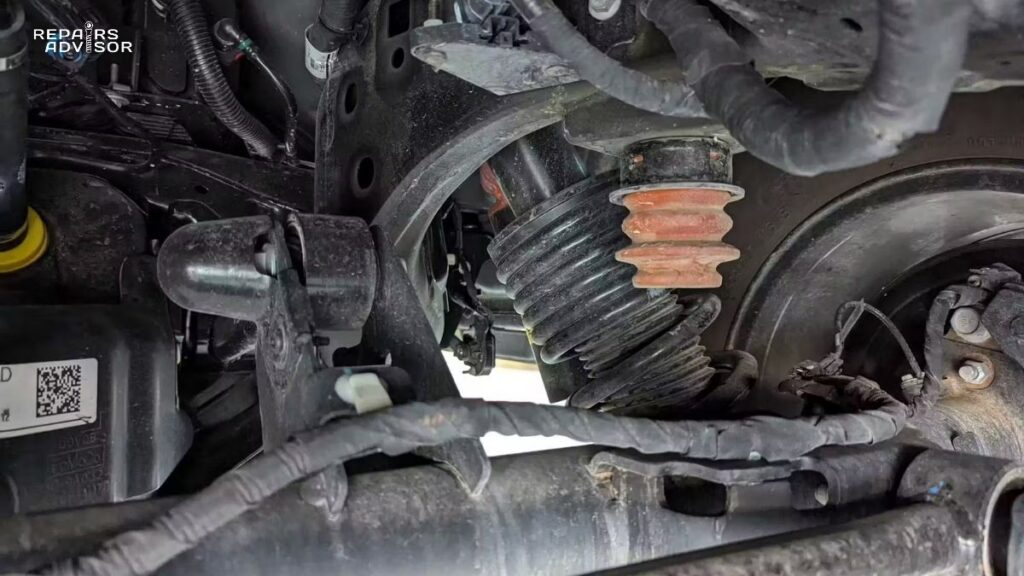

How Bump Stops Work: Suspension Travel Limiting
